Bio-Plex 200 系统 | Bio-Rad Laboratories

Bio-Plex 悬浮芯片系统可向蛋白质和核酸研究人员提供可靠的多重检测溶液，允许分析一个样品中的最多 100 种生物分子。

描述

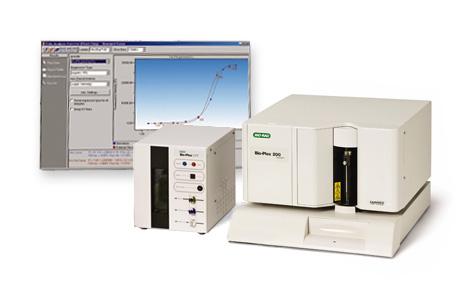

Bio-Plex® 200 系统是一种悬浮芯片系统，为蛋白和核酸研究人员提供可靠的多重检测解决方案，可对一份样品中多达 100 种生物分子进行分析。

包括的系统组件

  • 芯片读取器 — 结合了两种激光、高通量射流和实时数字信号处理功能，最多能够区分 100 组不同的彩色编码微球，每组代表不同的测定结果
  • 微孔板平台 — 自动读取 96 孔板的读数，在约 35 分钟内最多生成 9,600 个数据点
  • 校准和验证试剂盒 — 用于信号输出日常校准以及 IQ/OQ 和读取器主要性能参数的每月验证的系统工具
  • Bio-Plex MCV IV 型反应板 — 自定义的维护、校准和验证 (MCV) 反应板，用于启动、关机和性能测试而无需动手操作
  • PC 和显示器 — 包括 Pentium 4 处理器、CD-RW、Windows XP 操作系统、Microsoft Office Professional 和 Adobe Acrobat Reader 软件，以及一个 17″ 纯平显示器
  • Bio-Plex Manager™ 软件 — 用于控制仪器、数据采集和数据分析，以获得出色的曲线拟合、统计报告和制图功能，而无需导出或导入文件
  • Bio-Plex® SNP Manager™ 数据分析实用工具 — 易于使用的面向核酸应用的数据分析工具

Related Technologies

  • Bio-Plex Assay Data Analysis

Related Products

  • Bio-Plex 200 组件和消耗品

  • Bio-Plex 系统验证和校准工具

  • Bio-Plex Manager 软件标准版

  • Bio-Plex 软件升级和转换

  • Bio-Plex 3D 悬浮芯片系统

  • Bio-Plex Pro 自动洗板机

  • Bio-Plex Manager 软件标准版

  • Aurum 真空模块

技术指标

环境条件


工作温度
15–30°C (59–86°F)

Operating humidity, noncondensing
20–80%

操作高度
设计为可在平均海平面高达 2,000 m (6,600′) 的情况下操作

补偿范围
±2°C

UL 安装类别
UL 安装类别 II，如 UL 3101–1 的 Annex J 中定义

污染等级
UL 污染等级 2，如 UL 3101–1 的 3.7、3.2 部分中定义

Bio-Plex 芯片读取器规格


输入电压范围
100–240 V，1.5 A，47 – 63 Hz

物理尺寸（宽 x 深 x 高），cm
43 x 51 x 23

Weight, kg/lb
23/60

激光


报告激光
532 nm，>10 mW，倍频二极管；30 x 60 µm 椭圆光束

激光分类
635 nm，10 mW，二极管；30 x 60 µm 椭圆光束

射流


鞘流速，µl/sec
90

比色皿
200 平方 µm 流道

进样速度，µl/sec
60

电子


报告通道检测
光电倍增管，A/D 分辨率 14 位

分类和双重分辨信道检测
带温度补偿的雪崩光电二极管，A/D 分辨率 12 位

通信接口
RS–232

信号处理


测量分辨率
15 位有效

处理器模式
线性，具有对数或线性显示选项

动态范围，dB
70

Bio-Plex 微孔板平台规格


输入电压范围
100–240 V，1.5 A，47 – 63 Hz

物理尺寸（宽 x 深 x 高），cm
43 x 51 x 23

Weight, kg/lb
14.4 (32)

通信接口
RS–232

板载量
一个 96 孔微量滴定板，≤0.75

订购

items

Use the filters below to refine results!

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Bio-Plex® 200 System

171000201

100–240 V, multiplex array system, includes reader, microplate platform, Bio-Plex Manager™ 6.0 software, PC, calibration kit, validation kit 4.0, MCV plate IV, reservoir, sheath fluid, 2 sample needles

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Bio-Plex® 200 System With HTF

171000205

100–240 V, multiplex array system (#171-000201) with high-throughput fluidics

配套设备

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Bio-Plex® Handheld Magnetic Washer

171020100

Includes magnetic washer and adjustment hex tools for use in manual wash steps for all Bio-Plex Magnetic Assays

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Sheath Fluid

171000055

20 L, 1x fluid in cube container with pour spout, for use with the Bio-Plex® 200 and Bio-Plex 3D system array readers and high-throughput fluidics (HTF) system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Sheath Fluid Bottle

171002010

Pkg of 1, 1 L polypropylene bottle with sheath-fluid and air-intake ports and tubing, for use with the Bio-Plex 200 system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Sheath Waste Bottle

171002012

Pkg of 1, 1 L polypropylene bottle with waste port and tubing, for use with the Bio-Plex 200 system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Sample Needle

171002020

Pkg of 1, 11.6 cm (4.6″), long stainless steel sampling needle for use with the Bio-Plex 200 system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Alignment Guide with Shipping Pin

171002024

Pkg of 1, replacement fitting and blue shipping pin for Bio-Plex 200 system; aligns array reader on microplate platform

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Needle Adjustment Wrench

171002026

Pkg of 1, tool for adjusting sample needle on the Bio-Plex 100 system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Protective Shield for Sample Needle

171002030

Pkg of 1, covering for sample needle on the Bio-Plex 200 system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Air Intake Filter

171002032

Pkg of 1, replacement maintenance part for the Bio-Plex 200 system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Syringe Seal

171002033

Pkg of 4, replacement maintenance parts for syringe plunger on the Bio-Plex 200 system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Syringe Seal With Cylinder

171002034

Pkg of 1, replacement syringe assembly for internal fluidics system on the Bio-Plex 200 system

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Sheath Fluid Filter With Quick Connect Tubing

171002038

Pkg of 1, replacement maintenance part for internal fluidics system on the Bio-Plex 200 system; removes >5 μm diameter particles

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) Sheath Cube Filter

171002040

Pkg of 1, replacement maintenance part for use with high-throughput fluidics (HTF) system and Bio-Plex 200 system; removes >10 µm diameter particles

Bio-Plex 200 系统 | Bio-Rad Laboratories

(停产) HTF Tubing

171002056

Pkg of 1, air tubing HTF to reader, sheath tubing HTF to reader, tubing sheath container to HTF (including 10 µm filter), and waste tubing (reader to waste container)
