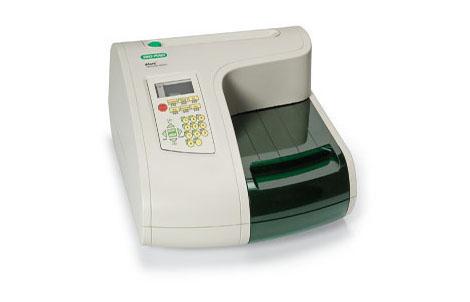

The iMark microplate absorbance reader is an economical, high-performance absorbance reader with flexible configurations. The instrument is packaged with the Microplate Manager software.
描述
The iMark™ microplate absorbance reader is an economical, high-performance absorbance reader with flexible configurations. The instrument can be used as a stand-alone reader or be controlled by a PC or Mac with Microplate Manager® 6 software. Microplate Manager software also allows powerful, versatile colorimetric and turbidimetric analyses, as well as report analysis for raw data, absorbance, limit, matrix, normalization, and curve fit.
Key features:
Capability to read flat-, U-, or V-bottom microplates, or 8- or 12-well strip plates
Single or dual wavelength detection
Variable-speed plate-shaking capability
Easy-access 8-position filter disk with 4 standard filters provided
Integrated thermal printer
USB2 port for external PC control
Related Products
Protein Assay Kits
SmartSpec Plus Spectrophotometer
技术指标
波长范围
400–750 nm
光度计范围
0.0–3.5 OD
线性
±1.0% from 0.0–2.0 OD; ±2.0% from 0.0–3.0 OD
准确度
±1.0% or 0.010 from 0.000–3.000 OD at 490 nm
精度
1.0% or 0.005 OD from 0.0–2.0 OD; 1.5% from 2.0–3.0 OD
分辨率
0.001 OD
滤光轮容量
8
Plate shaking
3 speeds: low, mid, high; duration: 0–999 sec
读取时间
6 sec at single wavelength, 10 sec at dual wavelengths
数据输出
Onboard graphical thermal printer and USB2 interface with PC or Mac data stations
数据存储
Calendar/clock function; 64 assay protocols
多语言支持
4 languages ROM capacity; LCD indication supported; printout report supported
Dimensions (W x D x H)
34.6 x 37.7 x 16.4 cm (13.6 x 14.8 x 6.5″)
Weight
5.5 kg (12 lb)
订购
items
Use the filters below to refine results!
(停产) iMark Microplate Absorbance Reader
1681130EDU
100/240 V, includes 415, 450, 490, 595, 655, and 750 nm filters, built-in plate shaker, onboard software and thermal printer, one roll printer paper, USB and power cables
本产品不提供在线销售。欲了解更多信息，请联系客户服务。
(停产) iMark Microplate Absorbance Reader with Microplate Manager software
1681135EDU
100/240 V, absorbance reader (#168-1130EDU), and Microplate Manager 6 software (#168-9520EDU); education use only
本产品不提供在线销售。欲了解更多信息，请联系客户服务。
配套设备
(停产) Microplate Manager Software 6
1689520EDU
PC/Mac, version 6, software for end-point and kinetic data analysis, for use with iMark microplate reader (#168-1130EDU); education use only
(停产) PC Serial Cable for Model 680 Reader
1681005EDU
Pkg of 1, cable, for use with Model 680 microplate reader; education use only
(停产) Printer Paper for Model 680 Reader
1681007EDU
Pkg of 2 rolls, printer paper for plate reader; education use only
(停产) Costar 96–Well Flat–Bottom EIA Plate
2240096EDU
Box of 20 packages, 5 high binding enzyme immunoassay plates per package (100 plates), polystyrene; education use only
试剂&试剂盒
(停产) Goat X Mouse-HRP
1721011EDU
2 ml, EIA-grade, enzyme-antibody conjugate; education use only
(停产) Bio-Rad Protein Assay Kit II
5000002EDU
Colorimetric assay kit, includes 450 ml dye reagent concentrate, bovine serum albumin standard; for 440 standard assays or 2,200 microplate assays; education use only
(停产) Quick Start Bradford Protein Assay Kit 1
5000201EDU
Colorimetric assay kit, includes 1x dye reagent (1 L), BSA standard (5 x 2 mg/ml); 200 standard assays or 4,000 microplate assays; education use only
(停产) Quick Start Bradford Protein Assay Kit 2
5000202EDU
Colorimetric assay kit, includes 1x dye reagent (1 L), BSA standard set (2 sets of 7 standards, 0.125–2.0 mg/ml, 2 ml); education use only
(停产) Quick Start Bradford Protein Assay Kit 3
5000203EDU
Colorimetric assay kit, includes 1x dye reagent (1 L), bovine γ-globulin standard (5 x 2 mg/ml); education use only
(停产) Quick Start Bradford Protein Assay Kit 4
5000204EDU
Colorimetric protein assay kit, includes 1x dye reagent (1 L), bovine γ-globulin standard set (2 sets of 7 standards, 0.125–2.0 mg/ml, 2 ml); education use only
Colorimetric assay kit, includes 450 ml dye reagent concentrate, bovine γ-globulin standard; for 440 standard assays or 2,200 microplate assays; education use only
(停产) DC Protein Assay Kit I
5000111EDU
Detergent-compatible colorimetric assay kit, includes 250 ml alkaline copper tartrate, 2 L dilute Folin reagent, 5 ml surfactant solution, bovine γ-globulin standard; 450 assays; education use only
(停产) DC Protein Assay Kit II
5000112EDU
Detergent-compatible colorimetric assay kit, includes 250 ml alkaline copper tartrate, 2 L dilute Folin reagent, 5 ml surfactant solution, BSA standard; 450 assays; education use only
(停产)RC DC Protein Assay Kit I
5000121EDU
Colorimetric assay kit, includes RC reagents package, DC protein assay reagents package, bovine γ-globulin standard; 450 standard assays; education use only
(停产)RC DC Protein Assay Kit II
5000122EDU
Colorimetric assay kit, includes RC reagents package, DC protein assay reagents package, BSA standard; 450 standard assays; education use only
相关资料
Login Required
Number描述Options
4000138-03
Instruction Manual, Microplate Manager, Version 5.2 User Guide, Rev A
