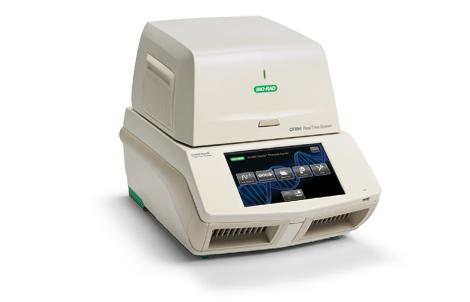

伯乐CFX96 Touch Real-Time PCR Detection System | Bio-Rad Laboratories

The CFX96 Optical Reaction Module converts a C1000 Touch Thermal Cycler into a real-time PCR system. This six-channel system combines advanced optical technology with precise thermal control.

描述

Product Discontinuation

The CFX Touch 96-well and 394-well Real-Time PCR Detection Systems will be discontinued soon. Please see the CFX Opus Real-Time PCR System for alternative products. We will continue to provide support for the CFX Touch 96-well and 384-well Real-Time PCR Detection Systems until December 2026.

Request a Demo

CFX Loyalty Program
Earn a free one-year service contract on your CFX System.

Learn More »

Real-Time PCR Tips, Tricks, and Best Practices Guide

Get the Guide »

The CFX96 Touch System is a powerful, precise, and flexible real-time PCR detection system. This six-channel (five colors and one FRET channel) real-time PCR instrument combines advanced optical technology with precise temperature control to deliver sensitive, reliable detection for singlexplex or multiplex reactions.

Quickly set up runs and monitor amplification traces in real time on the integrated LCD touch screen, or use the included CFX Maestro Software to easily and intuitively design your experiment and analyze results from a connected computer. With up to five-target detection, unsurpassed thermal cycler performance, unrivaled stand-alone functionality, and powerful yet easy-to-use software, the CFX96 Touch System is designed to advance your qPCR.

Key Features and Benefits

With the CFX96 Touch Real-Time PCR Detection System you can:

Set up your system quickly — easy installation and factory-calibrated optics
Minimize sample and reagent use — up to 5-target multiplexing with sample volumes as low as 10 µl
Optimize reactions in a single run — thermal gradient feature
Analyze data faster — visualize all run data at once and export only the data you need in the format you want
Use advanced data analysis tools — normalized gene expression using CFX Maestro Software
Configure the system to fit your needs — run without a computer, run up to 4 systems from 1 computer, or integrate with the CFX Automation System II for higher throughput
Combine the CFX96 Touch System with good laboratory practice standards — use CFX Maestro Software, Security Edition for data collection and analysis to simplify compliance with U.S. FDA 21 CFR Part 11 regulations

Flexible CFX System Configurations Meet Your Throughput Needs

The CFX Automation System II works with all CFX Real-Time PCR Detection Systems to enable walk-away, high-throughput qPCR operation. Integrate this robotic plate handler with one or two CFX Systems to maximize throughput while maintaining a compact footprint.

CFX96 Touch Real-Time PCR Detection System | Bio-Rad Laboratories

CFX Maestro Software Works Seamlessly with PrimePCR Assays and Panels

The expert design and wet-lab validation of all PrimePCR Assays ensure optimal assay performance. The integration of CFX Maestro Software with PrimePCR Assays aids in the analysis and interpretation of experimental results.

Begin analyzing data in a single step by importing target, reference, and control information from a PrimePCR run file directly into CFX Maestro Software
Combine data from multiple plates into a Gene Study to rapidly screen large numbers of targets or samples
Use powerful data visualization tools, such as hierarchical clustering and color-matched expression levels, to identify individual targets or clusters to consider for further investigation

Service Plans and Validation Tools for CFX Systems, Thermal Cyclers, and Real-Time PCR Instruments

The Bio-Rad Expert Care Service Program offers various service plans to keep your systems functioning optimally
CFX System IQ/OQ Services and CFX Automation System II IQ/OQ Services certify system installation and validate system performance
Thermal Validation Services test temperature accuracy and uniformity
The CFX Qualification Plate quickly and easily verifies the performance of your CFX Real-Time PCR Detection Systems

Related Technologies

Analysis of Stem Cells
Genomics
What is Gene Expression Analysis?
Real-Time PCR Experimental Design
What is Real-Time PCR (qPCR)?
Introduction to qPCR Instrumentation
Mutational Analysis
MIQE and RDML Guidelines

Related Products

C1000 Touch PCR 仪
S1000 PCR 仪
CFX384 Touch™ 荧光定量 PCR 检测系统

技术指标

PCR 仪

Chassis

C1000 Touch™

Maximum ramp rate, °C/sec

Average ramp rate, °C/sec

3.3

加热和冷却方法

Peltier

Lid, °C

Heats up to 105

温度

Range, °C

0–100

Accuracy, °C

±0.2 of programmed target at 90°C

Uniformity, °C

±0.4 well-to-well within 10 sec of arrival at 90°C

梯度

Operational range, °C

30–100

Programmable span, °C

1–24

光学检测

激励

6 filtered LEDs

检测

6 filtered photodiodes

激发/发射波长的范围，nm

450–730

Sensitivity

Detects 1 copy of target sequence in human genomic DNA

动态范围

10 orders of magnitude

扫描时间

所有通道，秒

FAM/SYBR^® Green only, sec

软件

操作系统

Windows 7, Windows 8, Windows 10

多重分析

Up to 5 targets per well

系统

已针对荧光定量 PCR 进行许可

Yes

样本载量，孔

Sample size, µl

1–50 (10–25 recommended)

通信接口

USB 2.0

电气认证

IEC, CE

尺寸（宽 x 深 x 高），cm/in

33 x 46 x 36 /13 x 18 x 14

Weight, kg/lb

21/47

订购

items

Use the filters below to refine results!

(停产) CFX96 Optical Reaction Module for Real-Time PCR Systems with Starter Package

1845096

96–well optical module for real-time PCR, includes CFX Maestro Software, qbase+ Software license, cables, reagents, consumables, for use with C1000 Touch™ Thermal Cycler Chassis

(停产) CFX96 Optical Reaction Module for Real-Time PCR Systems

1845097

96-well optical module for real-time PCR, includes cables, for use with C1000 Touch Thermal Cycler Chassis

配套设备

(停产) CFX Qualification Plate

1845098

Predispensed 96-well plate for performance validation of CFX96™, CFX96 Touch™, CFX96 Touch™ Deep Well, or CFX Connect™ Real-Time PCR Detection System, includes template DNA, primers, supermix, water

(停产) PX1 PCR Plate Sealer

1814000

PCR plate sealer, includes heat sealing instrument, plate support block that holds 96-well and 384-well plates, sealing frame, power cord

(停产) 1000-Series Connectivity Kit

1841001

Kit contains mouse, mouse pad, USB flash drive

试剂&试剂盒

(停产) SsoAdvanced™ Universal SYBR^® Green Supermix, 500 x 20 µl rxns, 5 ml (5 x 1 ml)

1725271

5 ml (5 x 1 ml vials), 2x qPCR mix, contains dNTPs, Sso7d fusion polymerase, MgCl₂, SYBR^® Green I, ROX Normalization Dyes, for 500 x 20 µl reactions

(停产) SsoAdvanced Universal Probes Supermix, 500 x 20 µl rxns, 5 ml (5 x 1 ml)

1725281

5 ml (5 x 1 ml vials), 2x qPCR mix, contains dNTPs, Sso7d fusion polymerase, MgCl₂, stabilizers, ROX Normalization Dyes, for 500 x 20 µl reactions

(停产) iTaq™ Universal SYBR^® Green Supermix, 500 x 20 µl rxns, 5 ml (5 x 1 ml)

1725121

500 x 20 µl reactions, 5 ml (5 x 1 ml), 2x qPCR mix, contains dNTPs, iTaq DNA Polymerase, MgCl₂, SYBR^® Green I, enhancers, stabilizers, and a blend of passive reference dyes

(停产) iTaq™ Universal Probes Supermix, 500 x 20 µl rxns, 5 ml (5 x 1 ml)

1725131

500 x 20 µl reactions, 5 ml (5 x 1 ml), 2x qPCR mix, contains dNTPs, iTaq DNA Polymerase, MgCl₂, enhancers, stabilizers, and ROX Normalization Dyes

(停产) SsoAdvanced™ PreAmp Supermix, 50 x 50 µl rxns, 1.25 ml

1725160

1.25 ml (1 x 1.25 ml), 2x PreAmp Mix contains dNTPs, Sso7d fusion polymerase, salts, enhancers, stabilizers, and other proprietary components, for 50 x 50 µl reactions

(停产) SingleShot™ SYBR^® Green Kit for Cell Lysis and RT-qPCR, 100 x 50 µl reactions

1725085

Pkg of 1, kit includes SingleShot Cell Lysis Reagents, iScript™ Advanced cDNA Synthesis Kit for RT-qPCR, SsoAdvanced™ Universal SYBR^® Green Supermix, and the SingleShot RNA Control, for 100 x 50 µl reactions

(停产) iScript™ Advanced cDNA Synthesis Kit, 100 x 20 µl rxns

1725038

100 x 20 µl reactions, includes 400 µl 5x iScript Advanced Reaction Mix, 100 µl iScript Advanced Reverse Transcriptase

(停产) iScript™ Reverse Transcription Supermix, 100 x 20 µl rxns, 400 µl

1708841

100 x 20 µl reactions, 4 x 100 µl 5x supermix, contains reverse transcriptase, RNase inhibitor, dNTPs, primers, MgCl₂, stabilizers; 50 reactions of no-RT control supermix

Plastics

(停产) Hard-Shell® 96-Well PCR Plates, low profile, thin wall, skirted, white/clear

HSP9601

Pkg of 50, white shell/clear well PCR plate, rigid 2-component design

(停产) Hard-Shell® 96-Well PCR Plates, low profile, thin wall, skirted, white/clear, barcoded

HSP9901

Pkg of 50, white shell/clear well PCR plate, barcoded, 7-digit sequential, Code 128, rigid 2-component design

The following replacement is recommended:

Hard-Shell® 96-Well PCR Plates, low profile, thin wall, skirted, white/white ( HSP9655 )

(停产) Hard-Shell® 96-Well PCR Plates, low profile, thin wall, skirted, white/white

HSP9655

Pkg of 50, white shell/white well PCR plate for higher fluorescent signals, rigid 2-component design

(停产) Multiplate™ 96-Well PCR Plates, low profile, unskirted, clear

MLL9601

Pkg of 25, clear PCR plate, one-component polypropylene, can be cut for fewer samples

(停产) Multiplate™ 96-Well PCR Plates, low profile, unskirted, white

MLL9651

Pkg of 25, white PCR plate, one-component polypropylene, can be cut for fewer samples

(停产) Microseal 'B' PCR Plate Sealing Film, adhesive, optical

MSB1001

Pkg of 100, optically clear seal for PCR plates

(停产) 0.2 ml 8-Tube PCR Strips without Caps, low profile, clear

TLS0801

Pkg of 120, thin-wall polypropylene 8-tube strips for PCR and low-volume reactions, clear (960 tubes)

(停产) 0.2 ml 8-Tube PCR Strips without Caps, low profile, white

TLS0851

Pkg of 120, thin-wall polypropylene 8-tube strips for PCR and low-volume reactions, white (960 tubes)

(停产) 0.2 ml Flat PCR Tube 8-Cap Strips, optical, ultraclear

TCS0803

Pkg of 120, 8-cap strips for 0.2 ml tubes and plates for PCR and optical reactions, ultraclear
